30x60x16 Triple Wide Metal Garage
Starting at$51,358*Final prices vary by location and customization options.
- Width
- 30'
- Length
- 60'
- Height
- 16'
- Roof
- Vertical
- 20-year rust-through warranty
- Financing & RTO Available
- BBB A+ Accredited
- Since 1997 · 100K+ buildings
Check Your Area
Delivery, certifications & load requirements
Overview
About the 30x60x16 Triple Wide Metal Garage

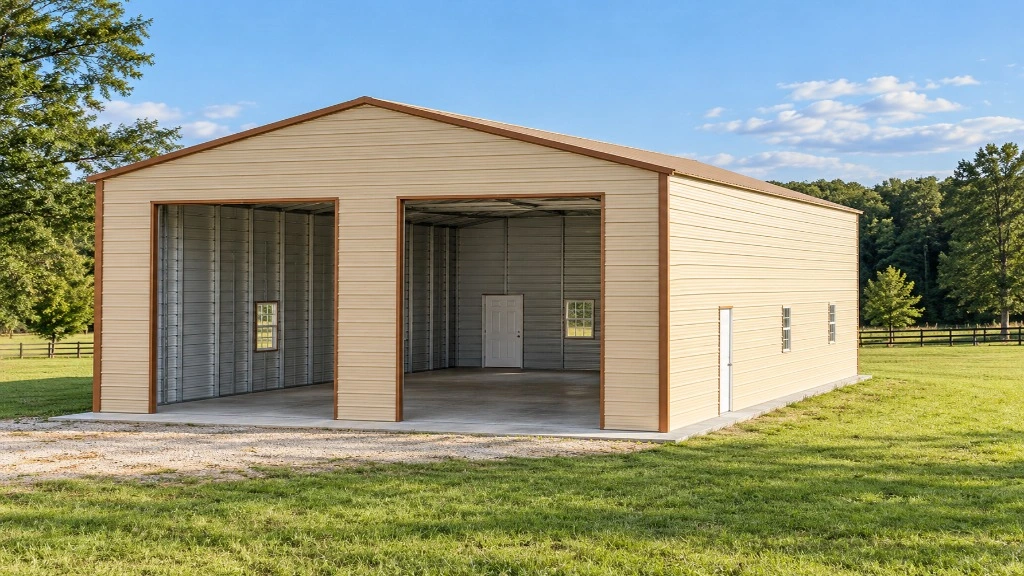

The 30 x 60 x 16 Triple Wide Metal Garage provides 1,800 square feet of enclosed space for vehicle storage, commercial equipment, agricultural machinery, workshops, and other large-scale storage needs. Measuring 30 feet wide by 60 feet long with a specified 16-foot height, this steel building offers a spacious interior for applications that require additional room for tall vehicles, equipment, and stored materials.
The building features a vertical roof with a 3/12 roof pitch, a 14-gauge frame, and fully enclosed sides and ends with horizontal wall panels. Its exterior combines a Tan roof, Copper trim, and Pebble Beige walls. A 26-gauge panel upgrade is included in the listed configuration, along with Prodex insulation specified for the full building.

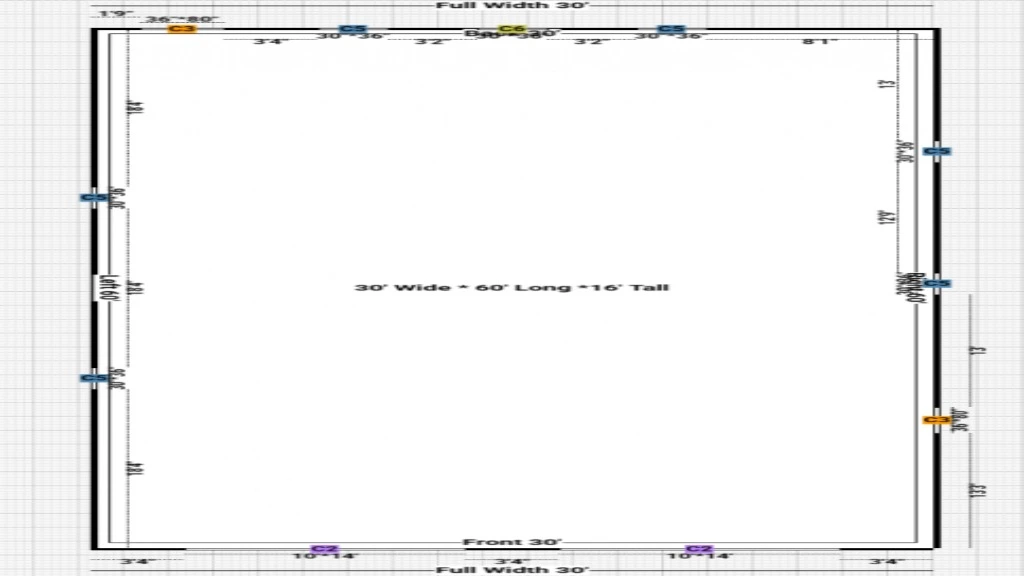

The layout includes two 10×14-foot garage door frameouts on the front, providing openings for compatible overhead garage doors once the appropriate doors and installation are arranged. Six standard 30×36-inch windows are listed across the left, back, and right walls, along with an additional window frameout on the back wall. Two 36×80-inch six-panel walk-in doors—one on the back wall and one on the right wall—provide separate access points.
This 30×60 triple wide metal garage is specified with a 145 MPH wind rating and a 43.5 PSF snow load certification. The configuration also includes extra bows, framing spaced 4 feet on center, colored screws, and base rail caulking. Concrete is the specified installation surface; the foundation and anchoring system should meet the manufacturer's requirements and applicable local building codes. Call our building experts to get a free custom quote or unlock the best offer on this building today.
Installed in Virginia
Best Seller
- Vertical roof built to local code3/12 pitch sheds rain and snow fast.
- 14-gauge frameGalvanized steel; 12-gauge upgrade available.
- Braces and anchorsOn every leg for added stability.
Product details
Specifications, Colors & Buying Guide
| Width | 30' | Length | 60' |
|---|---|---|---|
| Height | 16' | Floor area | 1800 sq ft |
| Capacity | 2 standard vehicles | Roof Style | Vertical |
| Roof Pitch | 3/12' | Roof Length | 61' |
| Structure | Clear span | Frame | 14-gauge galvanized (12-ga upgrade) |
| Panels | 29-gauge | Walls | Horizontal, fully enclosed |
| Gable ends | Fully enclosed | Anchoring | Braces & anchors on every leg |
| Garage doors | 2 × 8'×8' | Walk-in door | 1 × 36"×80" |
| Windows | 6 | Rust-through warranty | 20 years |
| Panel warranty | 10 years | Workmanship | 30 days |
| Installation | Free Installation on Your Pad | Service area | Nationwide |
| Brand | Garage Buildings | Delivery | Free Delivery on your site |
| Extra Bows | Included | Insulation | Prodex Type Insulation |
| Roof Slope | Vertical | Roof color | Tan |
| Trim Color | Copper | Wall Color | Pebble Beige |
| Roof Panels | Vertical-Style Steel Roof Panels | Wind Rating | 145 MPH |
| Intended Use | Large-scale vehicle parking, equipment storage, commercial applications, and compatible workshop activities | Windows size | 30″ W × 36″ H |
| Building Type | Triple Wide Metal Garage | Framing Gauge | 14 |
| Material Type | Galvanized steel | Panel Upgrade | 26-Gauge Panels |
| Top Use Cases | Vehicle storage, agricultural equipment, commercial storage, workshops, and machinery housing. | Walk-In Doors | 2 |
| Best Buyer Fit | Property owners, contractors, agricultural operators, and businesses needing a large enclosed steel building. | Colored Screws | Yes |
| Frame Material | Steel, Galvanized steel | Panel Material | Steel |
| Framing Spacing | 4 Feet on Center | Primary Materia | Steel, Metal |
| 2D Floor Planner | Yes | Snow Load Rating | 43.5 PSF |
| Vehicle Capacity | 1,800 sq. ft. of covered space; actual capacity depends on vehicle dimensions, interior layout, and access requirements. | Windows Location | Two on Left Wall, Two on Back Wall & Two on Right Wall |
| Leg Configuration | Double Legs | Total Covered Area | 1,800 sq. ft. |
| Walk-In Doors Size | 36″ W × 80″ H | Walk-in Door Style | Six-Panel Walk-In Doors |
| Weather Resistance | Vertical roof, 14-gauge framing, and specified 145 MPH wind and 43.5 PSF snow load ratings. | Insulation Coverage | Full Building |
| Installation Surface | Concrete | Walk-in Door Location | Back Wall and Right Wall |
| Garage Door Frameouts Size | 10′ W × 14′ H Each | Front Wall Garage Door Frameouts | 2 |
| Window Frame-out on the Back Wall | 30x36" Window Frameout (Standard) | ||
| Length | 60' | ||
| Floor area | 1800 sq ft | ||
| Roof Style | Vertical | ||
| Roof Length | 61' | ||
| Frame | 14-gauge galvanized (12-ga upgrade) | ||
| Walls | Horizontal, fully enclosed | ||
| Anchoring | Braces & anchors on every leg | ||
| Walk-in door | 1 × 36"×80" | ||
| Rust-through warranty | 20 years | ||
| Workmanship | 30 days | ||
| Service area | Nationwide | ||
| Delivery | Free Delivery on your site | ||
| Insulation | Prodex Type Insulation | ||
| Roof color | Tan | ||
| Wall Color | Pebble Beige | ||
| Wind Rating | 145 MPH | ||
| Windows size | 30″ W × 36″ H | ||
| Framing Gauge | 14 | ||
| Panel Upgrade | 26-Gauge Panels | ||
| Walk-In Doors | 2 | ||
| Colored Screws | Yes | ||
| Panel Material | Steel | ||
| Primary Materia | Steel, Metal | ||
| Snow Load Rating | 43.5 PSF | ||
| Windows Location | Two on Left Wall, Two on Back Wall & Two on Right Wall | ||
| Total Covered Area | 1,800 sq. ft. | ||
| Walk-in Door Style | Six-Panel Walk-In Doors | ||
| Insulation Coverage | Full Building | ||
| Walk-in Door Location | Back Wall and Right Wall | ||
| Front Wall Garage Door Frameouts | 2 |
Can't Find the Right Fit? Design Your 30x60x16 Triple Wide Metal Garage in 3D
Customize roof styles, colors, dimensions, doors, windows, insulation, lean-tos and certifications with our free 3D Building Designer before requesting a quote.
Flexible Payments
Affordable Payment Options
Two simple ways to pay for your 30x60x16 Triple Wide Metal Garage – with or without a credit check.
HFSFinancial
Rent-to-Own
Bad credit? No credit? No problem.- Up to
- $20,000
- Terms up to
- 60 mo
- Approval
- Same day
- EZPay Buildings48-month terms
- RTO NationalNo credit check
- HeartlandUp to 60 months
FAQ
Frequently Asked Questions about 30x60x16 Triple Wide Metal Garage
How much space does a 30 x 60 triple wide metal garage provide?
A 30 x 60 metal garage provides 1,800 square feet of nominal covered space for vehicle parking, equipment storage, machinery, and other storage needs.
What are the wind and snow load ratings of this metal garage?
This configuration is specified with a 145 MPH wind rating and a 43.5 PSF snow load certification. Confirm that these ratings meet the structural requirements and building codes for your installation location.
How tall is the 30 x 60 x 16 triple wide metal garage?
The building has a specified height of 16 feet, providing additional vertical clearance for compatible tall vehicles, machinery, and equipment. Confirm the available interior clearance for your intended use.
What size garage door openings does this building include?
The configuration lists two 10-foot-wide by 14-foot-high garage door frameouts on the front wall. The frameouts provide space for compatible overhead doors, but completed garage doors are not listed in the supplied configuration.
Does this 30 x 60 metal garage include insulation?
Yes. The configuration specifies Prodex-type insulation throughout the building. Confirm the exact insulation product and its documented thermal performance with the supplier.
What colors are available on this triple wide metal garage?
This configuration features a Tan roof, Copper trim, and Pebble Beige walls.
How many windows and walk-in doors does the building include?
The configuration lists six standard 30 x 36-inch windows, one additional window frameout, and two 36 x 80-inch six-panel walk-in doors. The walk-in doors are located on the back and right walls.
What type of roof does this 30 x 60 steel garage have?
It features a vertical roof with a 3/12 roof pitch. The vertical roof panels run from the peak toward the eaves to support water runoff.
Is the 30 x 60 triple wide metal garage fully enclosed?
Yes. The specified configuration includes both enclosed ends and both enclosed sides, creating an enclosed steel building. The front garage door frameouts still require compatible doors if a fully closed front entrance is desired.
What type of foundation is required for this metal garage?
Concrete is the specified installation surface. The foundation, slab thickness, and anchoring system should meet the manufacturer's engineering requirements and applicable local building codes.
What can a 30 x 60 triple wide metal garage be used for?
Common applications include vehicle storage, agricultural machinery housing, commercial equipment storage, workshops, and general-purpose storage. The suitability of each application depends on the intended use, local regulations, and any required modifications.
